The Switchboard Approach to Actor Composition

The act of composing is one of contextualising, making concrete. Potential is turned into actual. A composed entity is by definition less generic than the individual parts composing it. Four lego blocks can be combined in many different ways. Once they are combined, they are in one and only one specific arrangement.

A common point of discussion in the XState community is about how to compose actors together, so that independent units of functionality can reused in different contexts. However, it's surprisingly tricky due to the nature of actors and sending events. What composition exists is typically achieved in a bespoke manner, rather than building up a system using a library of generic actors.

Example system ​

For example purposes, an actor is defined as a function that receives the current state, the event, and then system context such as sendTo which allows the actor to send messages to other actors it has a reference to.

Initially, the system has Log , Debounce and SomeActor actors. All events get sent to Log, then to Debounce and then on to SomeActor

const Debounce = (actor) => (state, event, sendTo) => {
  state.events.push(event)

  afterADebouncePeriod(() => {
    sendTo(actor, state.events.unshift())
  })

  return state
}

const Log = (actor) => (state, event, sendTo) => {
  console.log(event)
  sendTo(actor, event)
}

const composedActor = Log(Debounce(SomeActor))

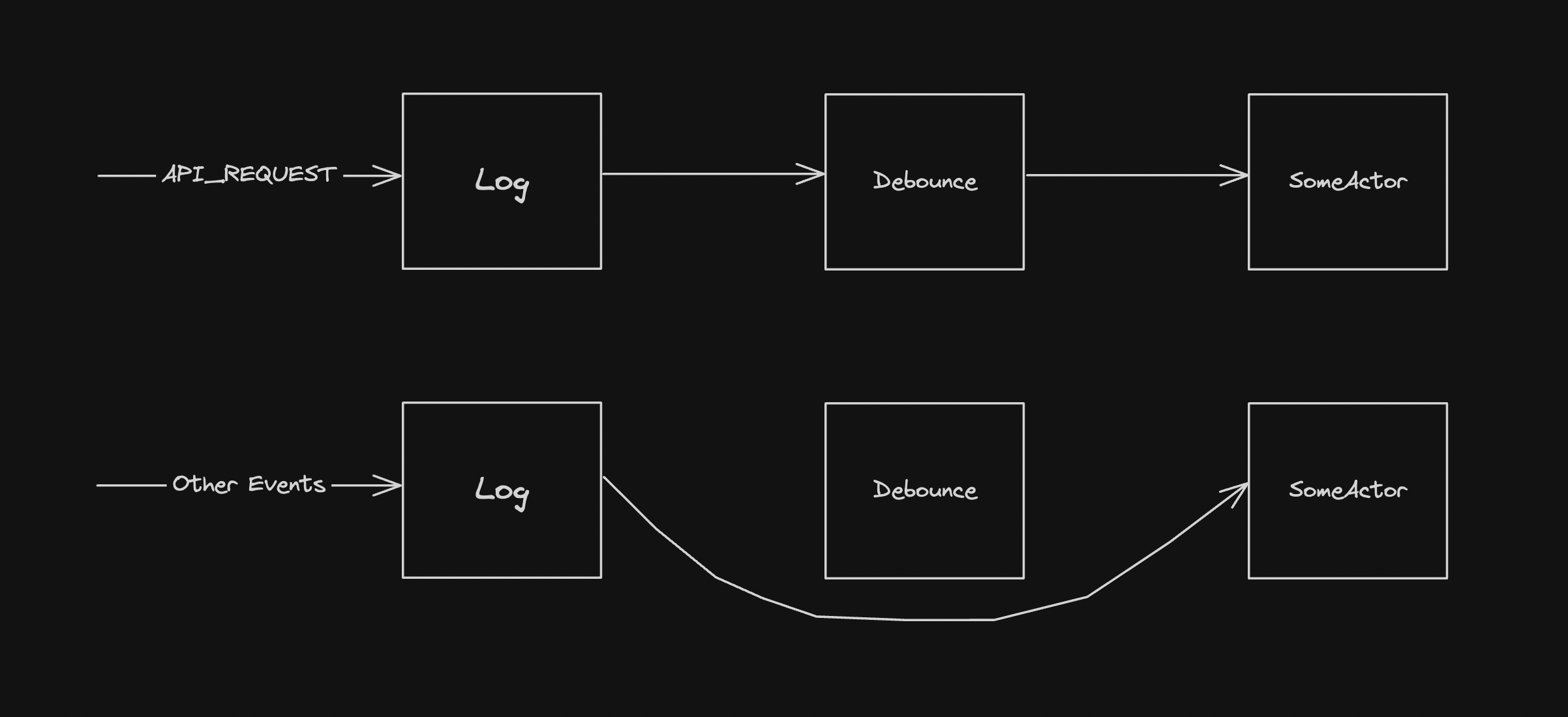

It's not likely that all events need to be debounced. Let's change the requirements so that API_REQUEST events get debounced, but all other events don't. Only API_REQUEST events need to be debounced

Debounce can check the event type and skip debouncing unless it's an API_REQUEST event:

// change Debounce so it only debounces API_REQUESTS
const Debounce = (actor) => (state, event, sendTo) => {
  if (event.type === 'API_REQUEST') {
    // debounce
  } else {
    // don't debounce
  }
  return state
}

const Log = (actor) => (state, event, sendTo) => {
  console.log(event)
  sendTo(actor, event)
}

const composedActor = Log(Debounce(SomeActor))

However, there's a problem. Debounce should be generic so that it can be used in lots of different situations, but now it's coupled to the specific context it's being used in. The system requirements changed, and to support the new requirements the generic module was changed.

What went wrong? ​

The problem is the actors being aware of the wider structure that they are participating in

The higher-order style of actor composition const composedActor = Log(Debounce(SomeActor)); works quite well if events flow through in a single stream, from one to the next. But the new requirements introduced branching - some events go straight through while others skip a step. This exposed the problem of each actor being responsible for sending events to the next one.

The problem of coordinated branching streams of events is quite general. I've observed problems in composing Observables where it's extremely difficult to follow the flow of events.

In a parent-child relationship, the parent has some responsibility for the child, because it exists in the parents context. In processes for example, if the parent is closed/exited then all descendants are as well.

By composing with const composedActor = Log(Debounce(SomeActor)), log is responsible for the events going to Debounce, and Debounce for the events going to SomeActor. But Log and Debounce are unrelated, so this arrangement is undesirable and the that Debounce couldn't stay generic.

How to fix it? ​

Control should return to the parent so that it can direct events to children

For inspiration, let's consider a similar system of plain JS functions:

function log(toLog) {
  console.log(toLog)
}

function debounce(func, delay) {
  let timeout = null
  return () => {
    timeout = setTimeout(() => {
      func()
    }, delay)
  }
}

function someFunction(event) {
  // do domething
}

function processEvent(event) {
  log(event)
  if (event.type === 'API_REQUEST') {
    debounce(() => someFunction(event))
  } else {
    someFunction(event)
  }
}

Interestingly, the plain function implementation doesn't suffer from the problem of messing with generic components to direct events differently. Debounce remains untainted - it's the outer processEvent function that directs events. This is fine, because processEvent is not a generic module - it is expected that nodes further away from the leaves are more aware of wider context.

When a function completes execution, control is returned to the caller. In this example, control starts with processEvent, goes into log, then back up to processEvent.

In the actor example, the control flow isn't going back out each time, it's continuing through to the next actor in the chain. After Log, Debounce takes control. It's this difference in control flow that means that in one case Debounce needs to change and in the other case it can remain generic.

Switchboard ​

Switchboards split logic from wiring, and prevent children referencing the outer context

I propose Switchboards as a solution:

const SwitchboardSystem = (state, event, sendTo) => {
  const wires = {
    // '' = external event
    "": {
      // * = catch all
      "*": 'debounce'
    },
    debounce: {
      API_REQUEST: 'someActor'
    },
    someActor: {},
  };
  const target = wires[event.origin][event.type]
  sendTo(target, event);
};


const Debounce = (state, event, emit) => {
  afterADebouncePeriod(() => {
    emit(event)
  })
}

const Log = (state, event, emit) => {
  console.log(state, event)
  emit(event)
}

const SomeActor = (state, event) {
  //...
}

The Switchboard approach makes every actor to be responsible for directing events downwards to children. Events flowing upwards cannot be directed to a particular destination, to prevent the problem of modules referencing the wider structure and breaking composition. Instead, events are emitted and then handled by the parent.

With Switchboard, the wiring is declared separately from the processing logic. To route events differently, only a small change in the wiring is needed.

const Switchboard = (state, event, { origin, sendTo }) => {
  const wires = {
    // '' = external event
    '': {
      // change to the wiring
      API_REQUEST: 'debounce',
      '*': 'someActor'
    },
    debounce: {
      API_REQUEST: 'someActor'
    },
    someActor: {}
  }
  const target = wires[origin][event]
  sendTo(target, event)
}

Summary ​

• Actors are hard to compose because they can directly reference each other
• References upwards need to be restricted
• Switchboard separates wires from logic, and only allows actors to reference children
